The Interface
Composer is a split screen. Your settings are on the left, under the section buttons 1, your product is on the right, with two small buttons in its corner 3 4, and the buttons that play, save and publish 5 run along the bottom, with the tools 6 at the far end.

You can drag the divider 2 between the two halves if you want more room for one or the other. It stops at a fifth of the width either way, so neither half can be squeezed out entirely.
The left half
A row of section buttons across the top: Models, Scene, GUI, Logic, Navigation, Dimensions, Personalization, Scripting. Clicking one changes what the panel below shows.
Sections not included in your plan carry a small premium badge, and hovering the button tells you which plans include it. Clicking one does not open it - it opens an Upgrade required dialog that names your current plan, the plans the feature needs, and links to the plan comparison. Navigation, Dimensions and Scripting need Standard or Pro; Personalization needs Pro.
Some sections have their own sub-tabs. GUI has nine, and they run in this order:
| Sub-tab | What it holds | Plan |
|---|---|---|
| Controls | the questions you ask the shopper | all plans |
| Layout | how the panel is arranged | all plans |
| Style | the panel's theme, theme variants and fonts | all plans |
| Translations | the same panel in another language | all plans |
| Parts | what the configured product is made of | Pro |
| Pricing | the base price, formulas and how it charges | all plans |
| Settings | the order snapshot and the shareable configuration link | all plans |
| Cart overview | what the shopper chose, summarised under the cart line | all plans |
| PDF reports | the documents generated from a configuration | Pro |
A sub-tab with something in it shows a count, so you can see at a glance how much you have set up. Parts and PDF reports behave like a gated section: on a plan that does not include them, clicking opens the same upgrade dialog rather than the tab.
Every section button and every sub-tab has a small documentation link beside it, which opens the page for that part of the editor.
If you are looking for the panels, fittings and hardware a configured product is made of, that is the Parts tab, not the Controls tab.
The right half
Normally the live 3D view. It updates as you edit, so changing a colour or moving a light shows immediately rather than after a reload.
Buttons in its top corner look after the view itself:
- The pause button, Pause rendering in its tooltip, stops drawing the view, and the same button, now Resume rendering, starts it again. Nothing about your work changes: the picture stands still, edits you make meanwhile wait for the view to start again, and your computer gets a rest from a heavy scene while you work in the form. A visit to the GUI section, or a press of Play, starts it again too.
- The eye button, Show debug info, opens a small panel with a tick box for each kind of editing handle in the view, Camera, Lights, Points of interest, Focals and Decals, each with how many there are, and the scene's triangles and meshes. Untick one to see the product without those handles.
- Edit variants, a pencil beside them, shows only in a project with variant rules and no controls, which drives its scene from bare variant names. It opens a dialog for renaming each variant and its values in every condition in the configuration. Two names that end up the same merge, which it warns about first, as a merge cannot be undone. With controls, rename a control's Key instead.
The view swaps to a different one when that is more useful:

- The GUI section replaces the 3D view with a live preview of the options panel itself. Its toolbar 1 has a Preview / Inspect pair - Preview lets you use the panel as a shopper would, Inspect outlines whatever you point at and a double-click jumps to that element's settings in the editor. Next to it are desktop and phone widths, a language toggle once you have added translations, and Reset all values to their defaults. The 3D view is paused while this pane is up.
- The Cart overview sub-tab replaces it with the card as it stands on a cart page, at a desktop or a phone width.
- The PDF reports sub-tab replaces it with a preview of the document, showing the page count, a Regenerate button and a download for the preview file.
Two things tell you the 3D view is not showing what you meant:
- Needs attention appears over the view when a field in the editor is invalid. It carries a count, opens a list with one entry per problem, and the arrow beside it walks through them in turn.
- Preview paused while the configuration cannot be built. replaces the view entirely when nothing can be assembled from the form. It carries its own Fix these to resume the preview list.
Editing versus playing
There are two modes, and knowing which you are in explains most surprises.

Edit mode is for building. You can click things in the 3D view to select them, drag them with the on-screen handles, and hide anything temporarily to get at what is behind it. What you are looking at is the authoring scene rather than the shopper's, and several behaviours deliberately do not run in it - Edit mode and Play covers which ones and how to preview them.

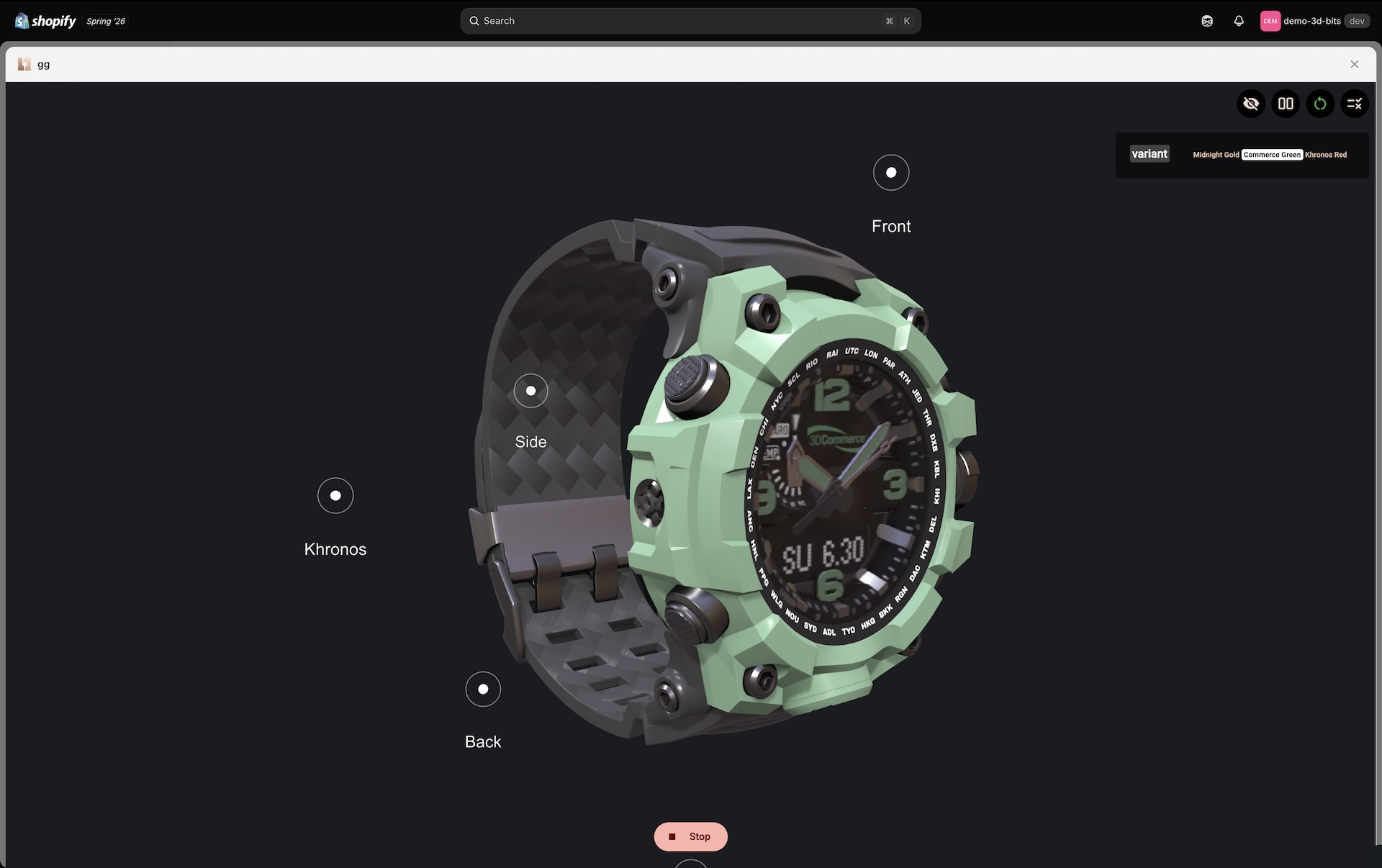

Play mode, which you enter with the Play button, is your shopper's view. It takes over the whole window: the settings panel and the bottom bar go away, and a Stop button appears over the view. Composer rebuilds the scene from the configuration as it currently stands, so the options panel, the logic, the prices and the camera moves behave as they will on the product page, with what your plan includes.
Play has its own small toolbar at the top of the view, for the options panel, a phone preview, a reset, the rules firing and three simulators. The Play toolbar goes through them.
Play continues from the selections you made last time rather than starting fresh, which is exactly why the toolbar has a reset - press it when you want to see the configurator as a first-time visitor does.
Stop returns you to editing, and so does the Esc key.
Moving things by hand
Composer has no buttons for switching handles on. Instead, clicking into a position, rotation or scale field brings up the matching on-screen handles for that thing, and dragging them writes the numbers back into the field.
It works the other way too. Clicking an object in the 3D view selects it, jumps the panel to its settings and outlines the field group you are now dragging.
The buttons along the bottom
Play starts Play mode.
Save stores your work in the project. Composer also saves on its own shortly after you stop typing, but pressing Save is worth doing before you step away. See Saving and Publishing.
Publish sends the configurator to your linked products, which is the separate deliberate step that makes changes public. Once it has, a link appears beside it: View on storefront, Preview while the product is not on your online store yet, or Copy URL when no product was linked.
Save and Publish are only there when Composer was opened from a project. Opened from the app's own Composer entry it has no project behind it, so both are absent - along with the pickers that reach into your store. See What Composer Is.
Undo and Redo step through your changes to the configuration. They cover the configuration itself, not what you have selected, hidden or highlighted in the editor, and they never reach back past the moment a different configuration was loaded.
The keyboard button opens the shortcut list below.
Examples loads a prepared configuration you can pull apart to see how it was done. A good way to learn a feature you have not used.
Loading an example, or importing a file, swaps out the whole configuration and starts the undo history again - Undo will not bring your own work back. Save first if there is anything in the project you want to keep.
The two arrows switch between the form and the raw JSON view. The JSON view is a text editor over the same configuration, useful for reading or pasting a whole block at once. It refuses in both directions when it would lose your work: out of the form while a field is invalid, because there is nothing valid to generate, and back into the form while the JSON will not parse.
Reset scene (clean refresh) rebuilds the 3D view from scratch, which is the thing to try if the preview gets into a strange state.
Files is a label in front of four buttons, always visible: import a scene configuration or project file, download the scene configuration, download a project file that also carries your editor state, and copy the configuration to the clipboard.
There is also a badge in the corner of the view showing which plan you are on.
When an edit seems to do nothing
The most common cause is a form error somewhere in the editor. If any field is invalid, Composer will not assemble the configuration, so the live preview pauses and saving, publishing and downloading have nothing to work with.
Nothing fails quietly, though. Every button you press yourself either does its job or says why it cannot, in a message that names the action and how many problems are in the way - "Cannot publish - the configuration has 3 problems. Fix them and try again." The one exception is the automatic save, which has no button behind it and would be shouting at you while you type; it shows a small sync icon with an exclamation mark in the bottom bar instead, and hovering it says what is blocking it. That icon covers form problems only, so press Save before you step away; Saving and Publishing says why.
Five different bars can appear, and they are not interchangeable:
| Bar | Where | What it means |
|---|---|---|
| Needs attention | over the 3D view, or in the bottom bar while a GUI, cart or PDF preview stands in its place | invalid form fields - the direct cause of a paused preview |
| Form has errors | at the foot of the Scene section | the same invalid fields, listed where you are working on them |
| Setup problems | bottom bar | things the schema cannot see: references to controls that no longer exist, effects on the wrong trigger, and rules that will block publishing |
| Blocking publish | bottom bar, after you press Publish | the schema rejected the configuration - publishing is refused until these are fixed |
| Fix in UI | bottom bar, JSON view only | schema errors in the text you are editing |
Fix in UI appears only while you are in the JSON view. In the normal form view the same problems reach you through the others. Every bar opens a list, and picking an entry takes you to the field it is about. See Troubleshooting if you get stuck.
Keyboard shortcuts
The keyboard button in the bottom bar shows this list at any time. On a Mac, use Cmd wherever the table says Ctrl.
| Shortcut | Does |
|---|---|
Ctrl + Z | Undo the last change |
Ctrl + Shift + Z, or Ctrl + Y | Redo the change you undid |
Ctrl + S | Save to your project |
Ctrl + J | Swap between the form and the JSON view |
Ctrl + Enter | Play the scene as a shopper sees it |
Esc | Stop Play, or leave the full-width preview |
Ctrl + Alt + F | Toggle the full-width preview |
Alt + 1 to Alt + 8 | Go to a section, numbered in the order the buttons are listed |
? or F1 | Show the shortcut list |
While your cursor is in a text field, undo, redo and the help key stand down so the browser's own undo can revert the characters you just typed. Every other shortcut in the table still works. The JSON view is a text editor, so it keeps its own undo, redo and find keys too.
A note on browsers
Composer is a desktop tool. It wants a reasonably sized screen because you are looking at a settings panel and a 3D view side by side. Building on a phone is not realistic.
Verified against the product in November 2026
